| Stock: | Stock | Product Name: | Steel Sheet Pile |
|---|---|---|---|
| Transport Package: | By Bundle | Origin: | China |
| Supply Ability: | 5000000t Per Year | Warranty: | 30 Years |
| Type: | Steel Plate | Standard: | ASTM, AISI, GB, JIS, DIN, BS |
| Surface Treatment: | Milling | Technique: | Hot Rolled |
| Application: | Widely Used In Petroleum,Foodstuff,Chemical Indust | Samples: | US$ 1/Piece 1 Piece(Min.Order) | Request Sample |
| Customization: | Available | Customized Request | ||
| High Light: | JIS 5528 Hot Rolled Steel Sheet Pile,Hot Rolled Steel Sheet Pile 1095,80m 1095 Steel Plate |
||
Name: Biggest steel sheet pile manufacturer in China
Delivery time: 1 week, 80000 tons stock
Steel Grade: SY295 SY390
Standard: EN10248 EN10249 JIS5528 ASTM
Technology: hot rolled
Certificate: ISO 9001/14001/CE/DIN/FPC for steel sheet piling
Length: Up to 80m per single length
Dimensions: Any dimensions
Shape:U/C/Z/T steel sheet piling
Painting: Painting,galvanizing,corner sections
Combined wall: Tubular combined walls,HZ combnined walls.

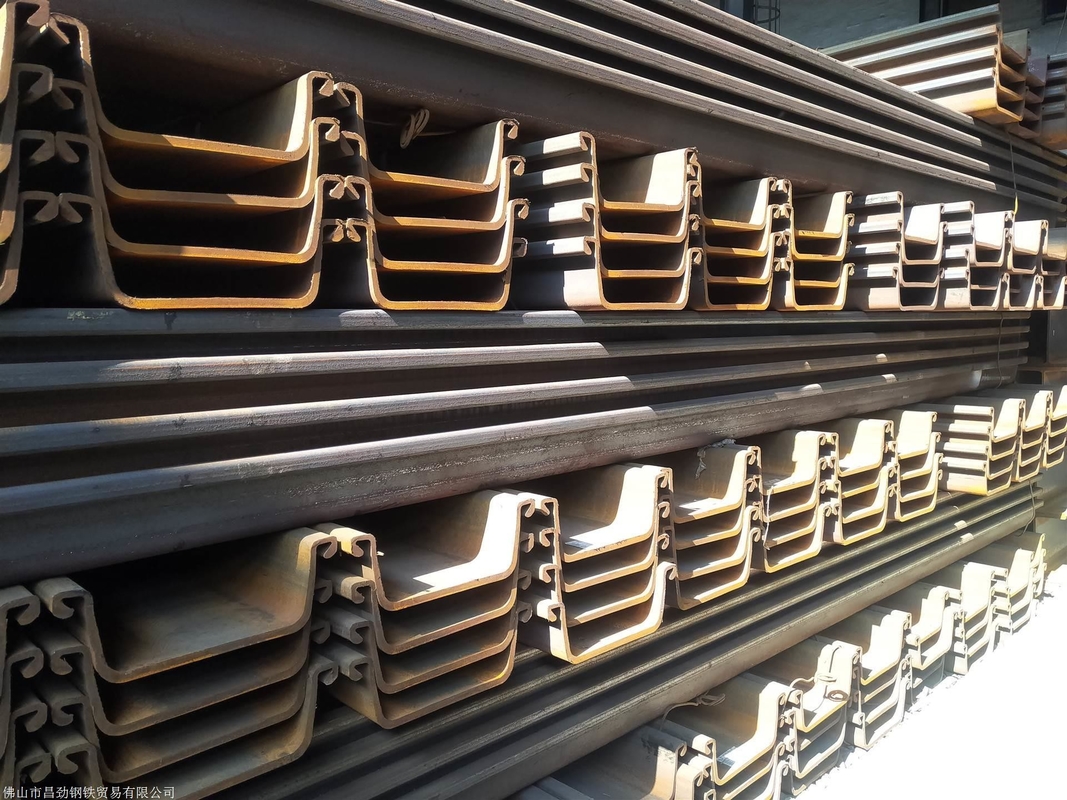

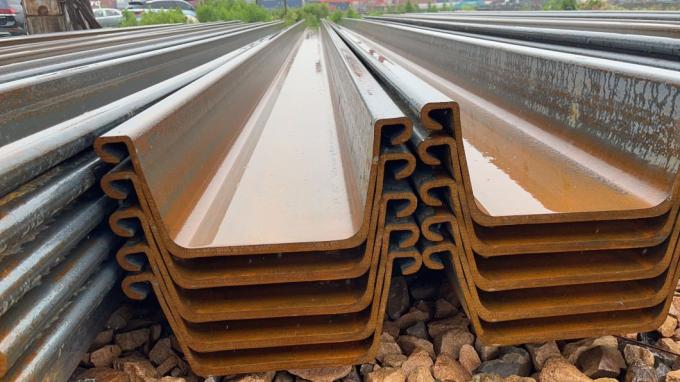

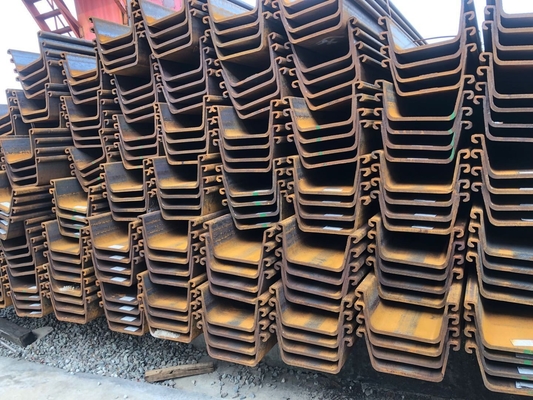

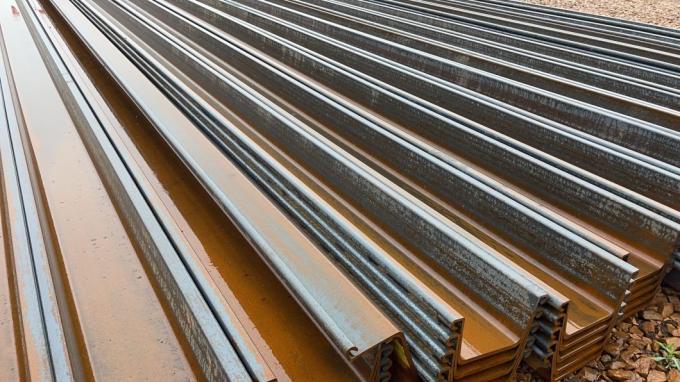

U sheet pile has many advantages as following:
1. It combines great profile depth and has excellent statical proerties;
2. It is quite suitable for re-use due to the symmetrical form of the single element;
3. It is possible to assemble the piles into pairs in the factory, this way could improve the quality and performance of installation;
4. Good corrosion resistance performance.
Supply Ability
5000 Ton/Tons per Day Biggest sheet pile manufacturer in China
Packaging & Delivery
Standard package for Biggest sheet pile manufacturer in China, producing all types of steel sheet pile Port
Nanjing or Shanghai port for Biggest sheet pile manufacturer in China, producing all types of steel sheet pile
| Product Name | Biggest steel sheet pile manfacturer in China,producing all types of sheet pile |
| Steel Grade | S275,S355,S390,S430,SY295,SY390,ASTM A690 |
| Production standard | EN10248,EN10249,JIS5528,JIS5523,ASTM |
| Delivery time | One week,80000 tons in stock |
| Certificates | ISO9001,ISO14001,ISO18001,CE FPC |
| Dimensions | Any dimensions,any width x height x thickness |
| Interlock types | Larssen locks,cold rolled interlock,hot rolled interlock |
| Length | Single length up to over 80m |
| Size | Per piece | ||||
| Specification | Width (mm) |
High (mm) |
Thick (mm) |
Section area (cm2) |
Weight (kg/m) |
| 400 x 85 | 400 | 85 | 8.0 | 45.21 | 35.5 |
| 400 x 100 | 400 | 100 | 10.5 | 61.18 | 48.0 |
| 400 x 125 | 400 | 125 | 13.0 | 76.42 | 60.0 |
| 400 x 150 | 400 | 150 | 13.1 | 74.40 | 58.4 |
| 400 x 170 | 400 | 170 | 15.5 | 96.99 | 76.1 |
| 600 x 130 | 600 | 130 | 10.3 | 78.7 | 61.8 |
| 600 x 180 | 600 | 180 | 13.4 | 103.9 | 81.6 |
| 600 x 210 | 600 | 210 | 18.0 | 135.3 | 106.2 |
| 750 x 205 | 750 | 204 | 10.0 | 99.2 | 77.9 |
| 750 | 205.5 | 11.5 | 109.9 | 86.3 | |
| 750 | 206 | 12.0 | 113.4 | 89.0 | |
| Specification | Width (mm) |
High (mm) |
Thick t (mm) |
Thick s (mm) |
Weight (kg/m) |
| SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
| SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
| SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
| SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
| SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
| SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
| SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
| SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
| SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
| SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
| SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
| SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
| SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
| SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |
1.Abundant specifications and models.
2.The symmetrical structure is conducive to repeated use.
3.The length can be customized according to customer requirements, which brings convenience to construction and reduces cost.
4.Convenient production, short production design and production cycle.
1.Flexible design, a relatively high section modulus and mass ratio.
2.The stiffness of sheet pile wall is increased to reduce the displacement and deformation.
3.Large width, effectively save the time of hoisting and piling.
4.With the increase of section width, the water stop performance is improved.
5.More excellent corrosion resistance.
