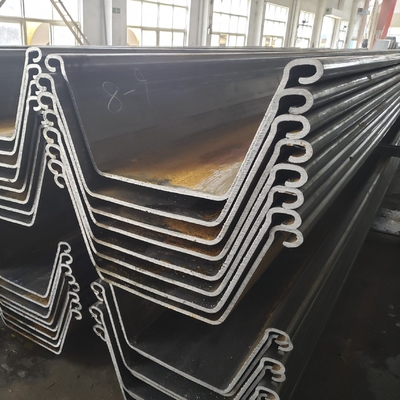

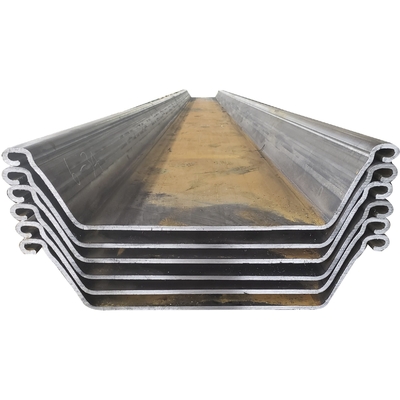

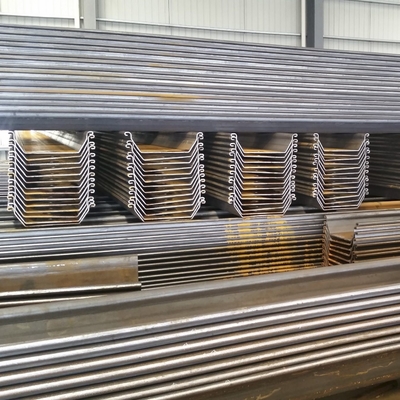

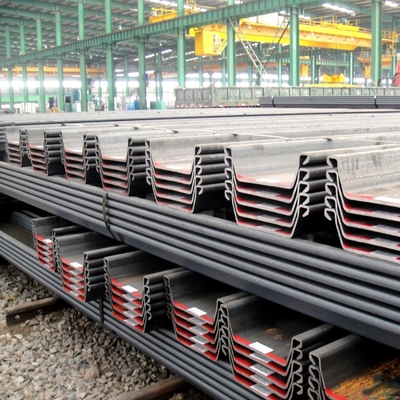

AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile

AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile
AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile

Large Image :  AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile

Product Details:
Place of Origin: Shandong,China
Brand Name: Rigang Steel
Payment & Shipping Terms:
Minimum Order Quantity: 3 tons
Price: $580.00/Tons 3-24 Tons
Packaging Details: by Bundle
Delivery Time: 5-10 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Ton/Tons per Month

AISI Hot Rolled Steel Sheet Pile 5.5 Inch For Construction Steel Profile

Description
Product: Steel Sheet Pile Size: 5.5 Inch
Technique: Hot Rolled Surface Treatment: Milling
Transport Package: By Bundle Application: Widely Used In Petroleum,Foodstuff,Chemical Indust
Standard: ASTM, AISI, GB, JIS, DIN, BS Supply Ability: 5000000t Per Year
Stock: In Stock Customization: Available | Customized Request
Highlight:

AISI Hot Rolled Steel Sheet Pile

,

Hot Rolled Steel Sheet Pile 5.5 Inch

,

5.5Inch Carbon Steel Plate

Steel sheet pile is a kind of steel structure with linkage device at the edge, which can be freely combined to form a continuous and tight retaining wall or water retaining wall

Overview

Basic Info.

Application
Widely Used in Petroleum,Foodstuff,Chemical Indust
Stock
Stock
Product Name
Steel Sheet Pile
Transport Package
by Bundle
Origin
China
Production Capacity
5000000t Per Year

Product Description

Product Parameters


Name:   Biggest steel sheet pile manufacturer in China
Delivery time:  1 week, 80000 tons stock
Steel Grade:   SY295 SY390
Standard:   EN10248 EN10249 JIS5528 ASTM
Technology:  hot rolled
Certificate:   ISO 9001/14001/CE/DIN/FPC for steel sheet piling
Length:   Up to 80m per single length
Dimensions:   Any dimensions
Shape:U/C/Z/T steel sheet piling
Painting:   Painting,galvanizing,corner sections
Combined wall:   Tubular combined walls,HZ combnined walls.


U sheet pile has many advantages as following:

1. It combines great profile depth and has excellent statical proerties;
2. It is quite suitable for re-use due to the symmetrical form of the single element;
3. It is possible to assemble the piles into pairs in the factory, this way could improve the quality and performance of installation;
4. Good corrosion resistance performance.

Supply Ability

5000 Ton/Tons per Day Biggest sheet pile manufacturer in China



Packaging & Delivery


Standard package for Biggest sheet pile manufacturer in China, producing all types of steel sheet pile Port
Nanjing or Shanghai port for Biggest sheet pile manufacturer in China, producing all types of steel sheet pile


Product Name Biggest steel sheet pile manfacturer in China,producing all types of sheet pile
Steel Grade S275,S355,S390,S430,SY295,SY390,ASTM A690
Production standard EN10248,EN10249,JIS5528,JIS5523,ASTM
Delivery time One week,80000 tons in stock
Certificates ISO9001,ISO14001,ISO18001,CE FPC
Dimensions  Any dimensions,any width x height x thickness
Interlock types Larssen locks,cold rolled interlock,hot rolled interlock
Length  Single length up to over 80m
Product Description

Specifications And Models Of Steel Sheet Pile
GB U type steel sheet piles

Size Per piece
Specification Width
(mm)
High
(mm)
Thick
(mm)
Section area
(cm2)
Weight
(kg/m)
400 x 85 400 85 8.0 45.21 35.5
400 x 100 400 100 10.5 61.18 48.0
400 x 125 400 125 13.0 76.42 60.0
400 x 150 400 150 13.1 74.40 58.4
400 x 170 400 170 15.5 96.99 76.1
600 x 130 600 130 10.3 78.7 61.8
600 x 180 600 180 13.4 103.9 81.6
600 x 210 600 210 18.0 135.3 106.2
750 x 205 750 204 10.0 99.2 77.9
750 205.5 11.5 109.9 86.3
750 206 12.0 113.4 89.0
Z type steel sheet piles:

Specification  Width
(mm)
High
(mm)
Thick t
(mm)
Thick s
(mm)
Weight
(kg/m)
SPZ12 700 314 8.5 8.5 67.7
SPZ13 700 315 9.5 9.5 74
SPZ14 700 316 10.5 10.5 80.3
SPZ17 700 420 8.5 8.5 73.1
SPZ18 700 418 9.10 9.10 76.9
SPZ19 700 421 9.5 9.5 80.0
SPZ20 700 421 10.0 10.0 83.5
SPZ24 700 459 11.2 11.2 95.7
SPZ26 700 459 12.3 12.3 103.3
SPZ28 700 461 13.2 13.2 110.0
SPZ36 700 499 15.0 11.2 118.6
SPZ38 700 500 16.0 12.2 126.4
SPZ25 630 426 12.0 11.2 91.5
SPZ48 580 481 19.1 15.1 140.2

Advantages

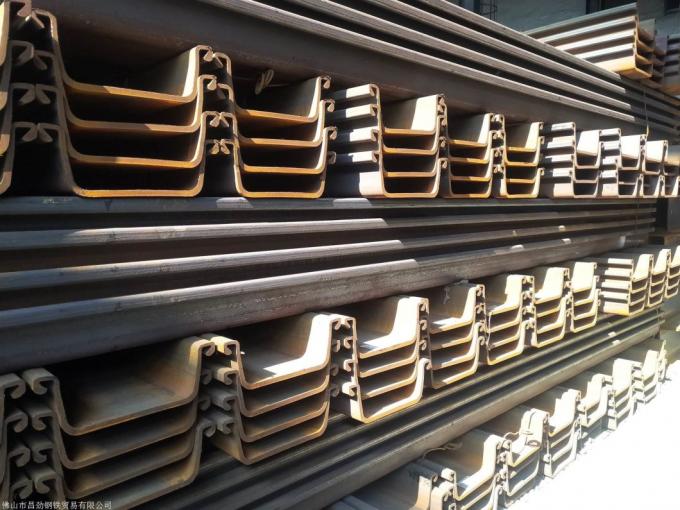

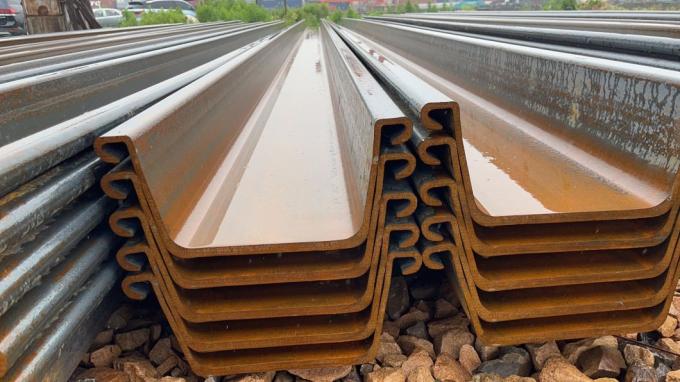

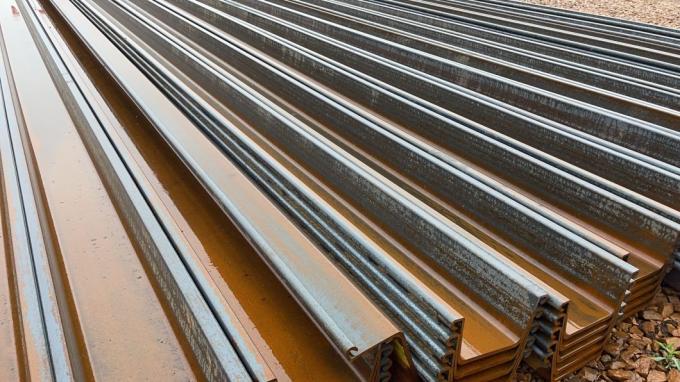

U Type Steel Sheet Pile
U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile

1.Abundant specifications and models.

2.The symmetrical structure is conducive to repeated use.
3.The length can be customized according to customer requirements, which brings convenience to construction and reduces cost.

4.Convenient production, short production design and production cycle.

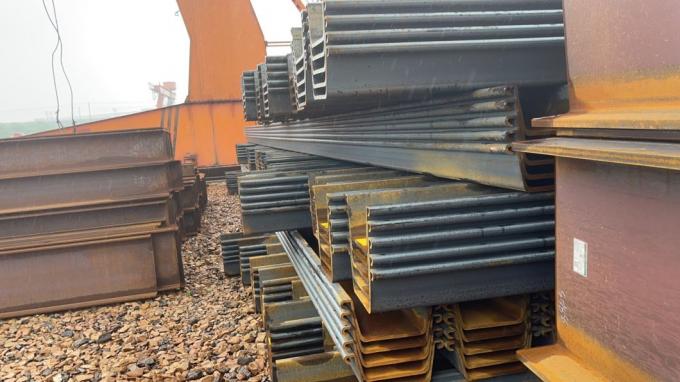

Z Type Steel Sheet Pile
U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile

1.Flexible design, a relatively high section modulus and mass ratio.

2.The stiffness of sheet pile wall is increased to reduce the displacement and deformation.

3.Large width, effectively save the time of hoisting and piling.

4.With the increase of section width, the water stop performance is improved.

5.More excellent corrosion resistance.

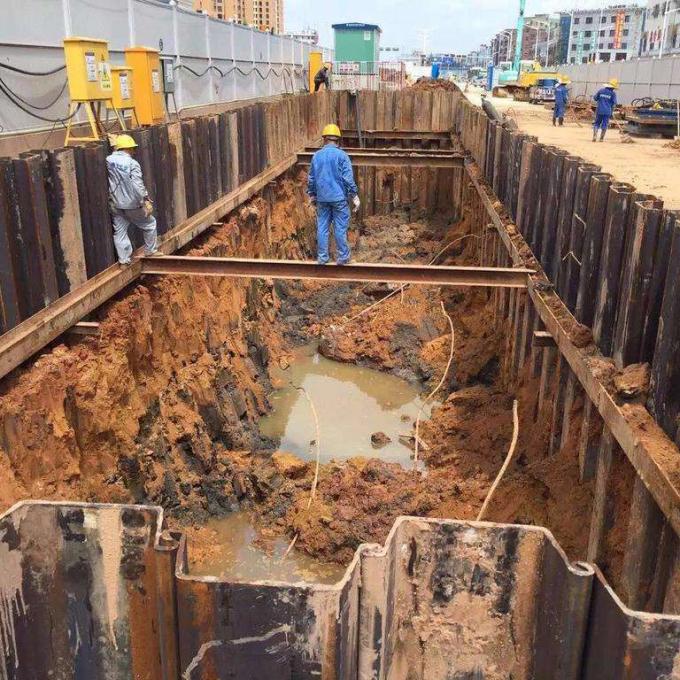

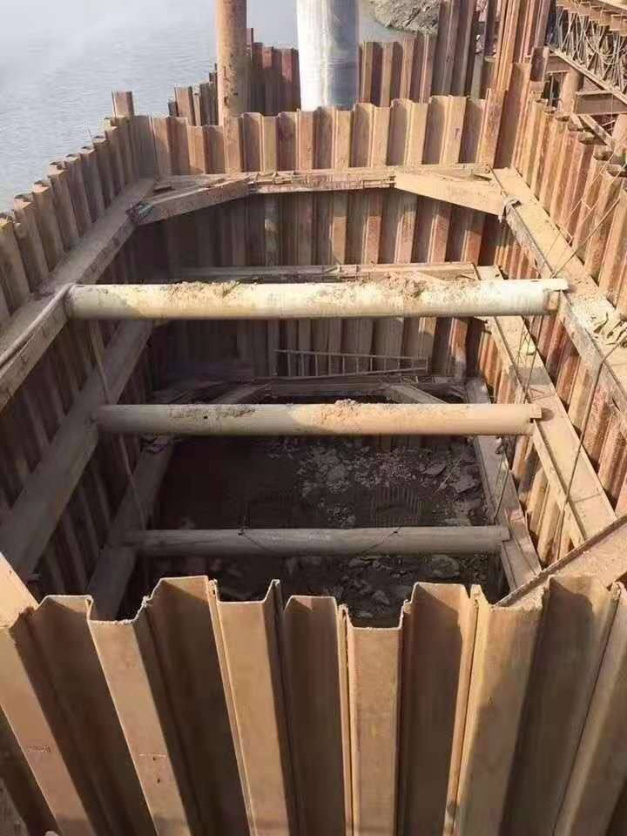

Application

1. Wharf wall, noise isolation wall, etc. Used in hydraulic engineering.
2.Used for wall protection and parking equipment in waterway civil engineering.
3.Used for the control of water conservancy project construction pollution.


U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile
U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile

U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile
U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile
U Type Hot Rolled Steel Sheet Pile Price Per Ton/Type 3 Type 4 Hot Rolled Steel Sheet Pile
